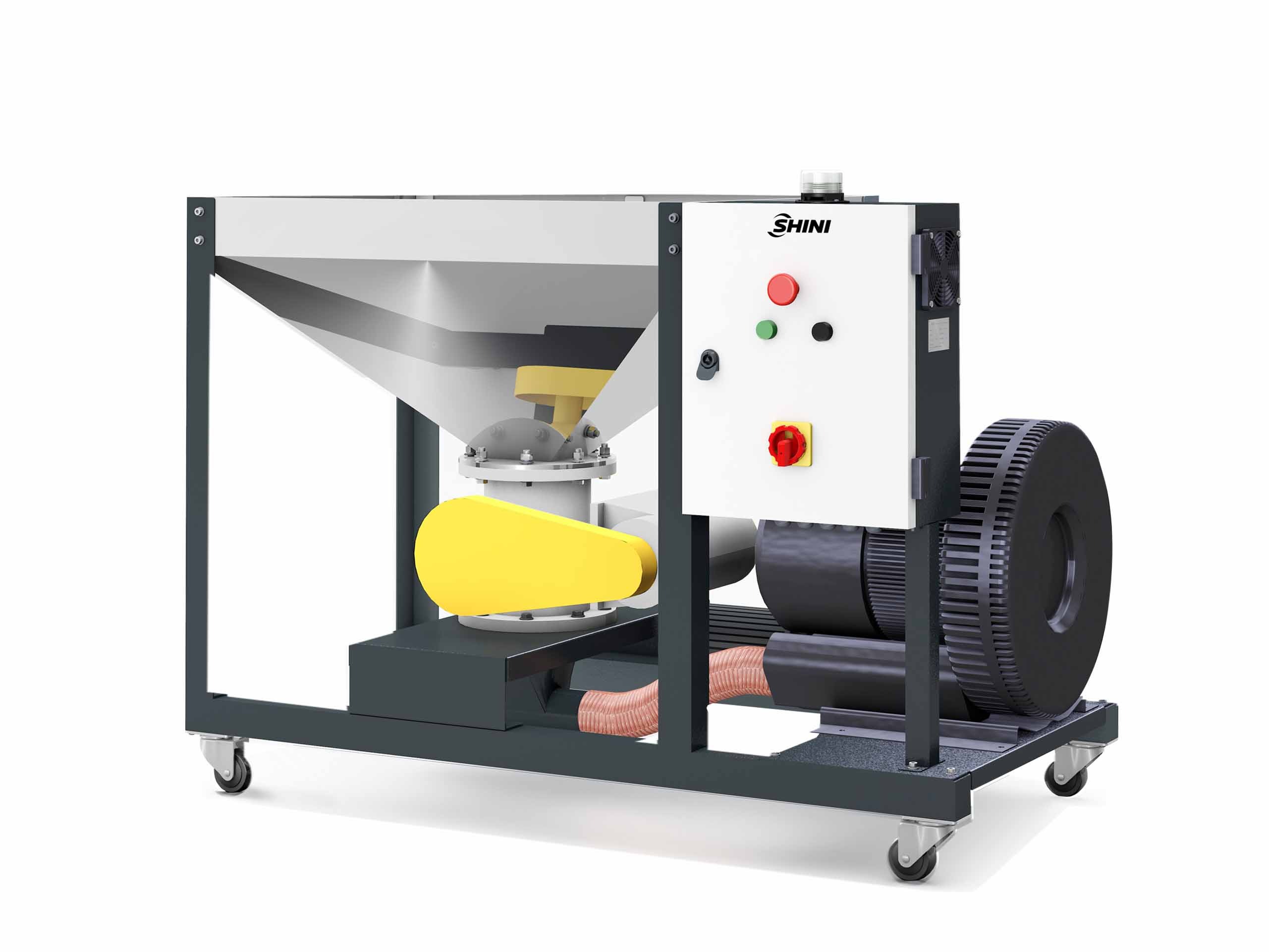

Positive Pressure Conveying System

The SRPC Series is a compact, high-efficiency conveying solution engineered for clean, reliable transport of plastic granules over long distances.
With a stainless-steel storage box, rotary valve metering, and positive-pressure conveying design, it delivers consistent throughput and contamination-free operation for demanding production environments.

Key Advantages

• Clean, Contamination-Free Conveying
  Positive pressure airflow isolates material from external contaminants, making the SRPC Series ideal for clean handling and high-hygiene environments.

• Smooth, Controlled Material Metering
  A precision rotary valve feeds granules into the airflow at a controlled rate.
  The blower starts first, followed by a delayed valve opening to prevent surging.
  When conveying stops, the valve closes immediately to avoid residue or blockage.

• Mobile, Easy-to-Install Design
  Mounted on casters, the SRPC unit can be moved and positioned quickly, supporting flexible production layouts and rapid setup changes.

• Hygienic Stainless Steel Storage Box
  The SUS304 polished storage box resists contamination, is easy to clean, and maintains stable material quality during handling.

• High Conveying Capacity
  According to performance charts, the SRPC Series achieves strong output at a 15 m conveying distance, with models reaching up to 5.5 tons/hr (e.g., SRPC-6).
